001 Solar cat eye reflectors aluminum reflective solar road stud

FOB Reference Price:Get Latest Price
US $0.5-5 / Pieces | 50 Piece/Pieces Solar cat eye reflectors aluminum reflective solar road stud (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
AMBUND
Model Number:
SRS-AL
Material:
Shell Aluminum+Filling Epoxy glue and quartz sand+lens PMMA
Compressive load:
≥200kN
Color:
Red/ Yellow/Blue/Green/White
Type:
001 Solar cat eye reflectors aluminum reflective solar road stud
Power:
Solar
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week Aluminium Solar Road Stud
Packaging & Delivery
Packaging Details
the cat eye road stud packed with inner box
and a carton of outside as protection
Port
Ningbo or Shanghai
Lead Time :
15 days after receving the deposit

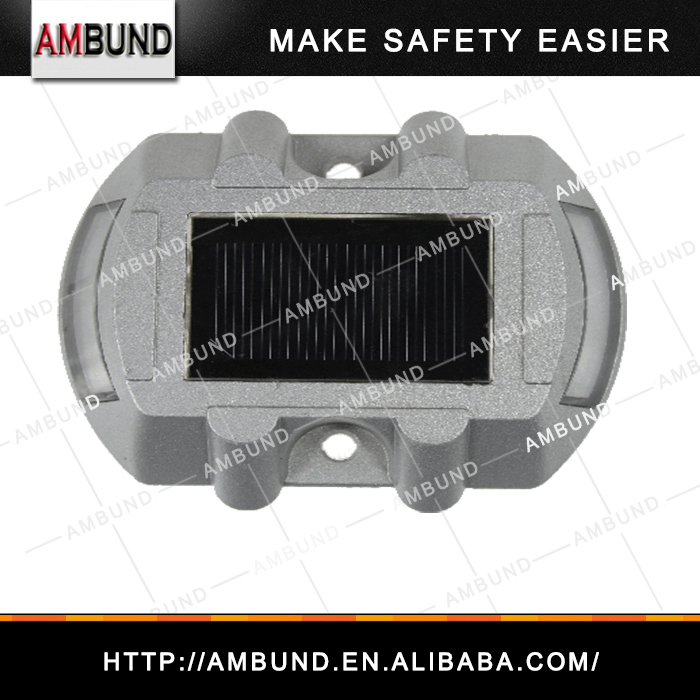

Aluminium reflective Solar Road Stud

Item no.: SRS-AL001










Product Picture



Technical Specifications:

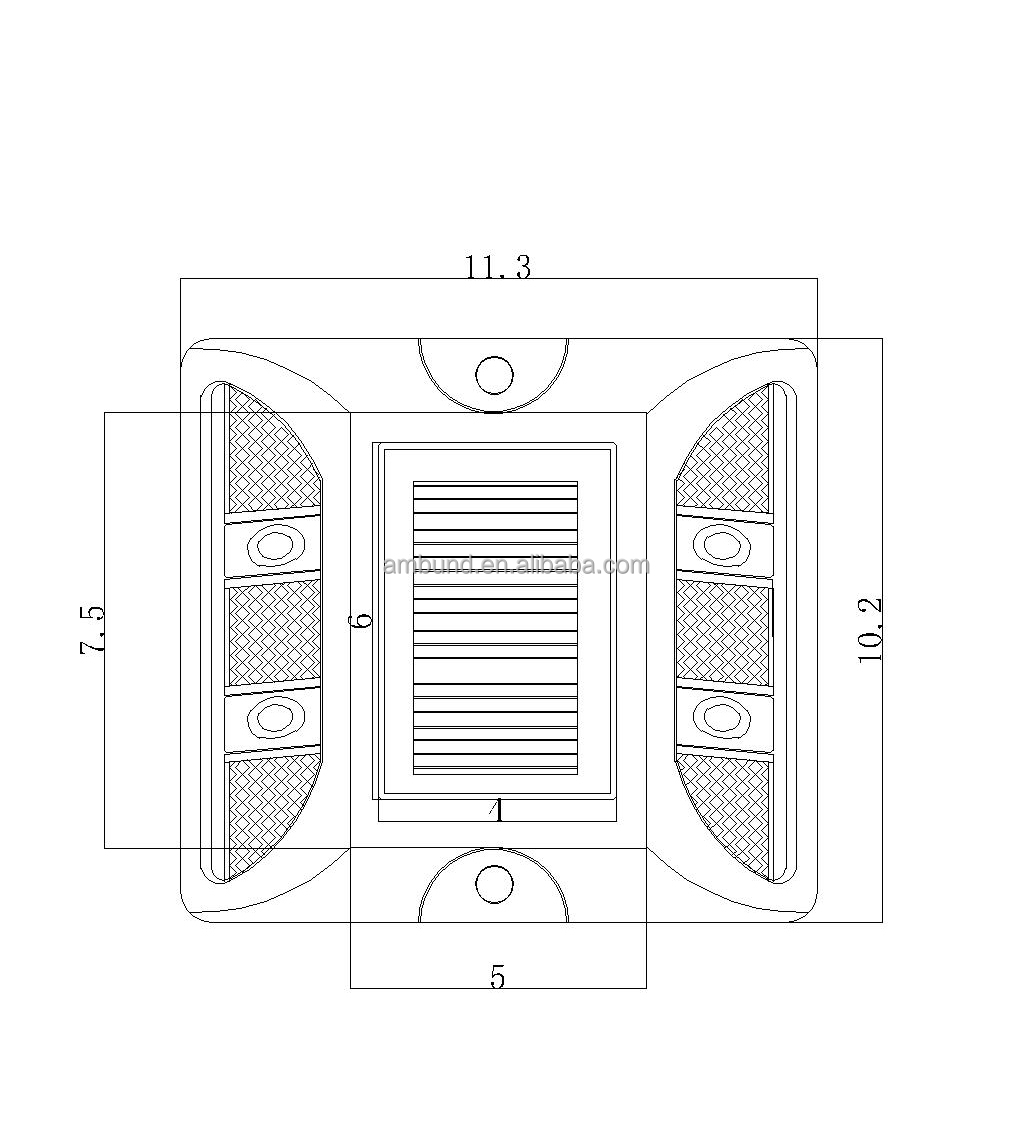

Size of the Aluminum road stud: 103*113*22mm;  Net weight: 318g
Solar panels:3v / 85mah
Power supply: 1.2v 600mah NI-MH battery
Rated power:0.065W
Lighting mode: flashing
LED: φ5mm,  6pcs (dual side)
Luminous colors: yellow, red, white, blue, green
Working time: over 60 hours after full charged.
Visual distance: >500m
Temperature rating: -20°C to +70°C
Material: acrylic reflector and aluminum frame
Compression resistance: over 10ton
Application: road sides



Features:
1.The embedded reflectors are made of acrylic mixed material, hardness is very high.

   The solar road stud aren't hurt when the wheels droven on them,and the super high indentity brings you the good reflective effect at far distance.



2.The special mixed glue can protect the coating of the reflector's back from being eroded under the high temperature.



3.The aluminum frame is sand-blasted,and curve smooth, without sharp edges, wheels are droven on the frame, it benefits to extent the lifetime of wheels.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------











1.Item No.: RS-A08-001

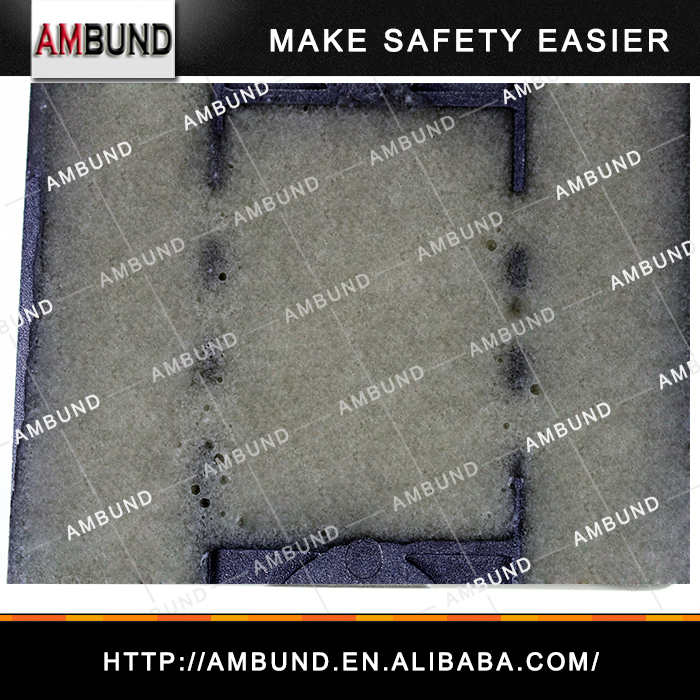

2. Material of the Aluminum road stud: Shell Aluminum+Filling Epoxy glue and quartz sand+lens PMMA

3.Size:102*102*22mm

4.Net.W:320g±5

5.Solar Cat eye road stud Compressive load 200kN

6.Luminous Color: Red/ Yellow/Blue/Green/White

7.The solar road stud Bearing capacity:16tons

8.photometric value:over 600mcd

9.Packing size:40.5*28*23cm

10.G.W:17.51kg. N.W:15kg

11.Quantity:50pcs/CTN





1. Solar Cat eye road stud can withstand the quality of 1kg of solid steel ball from 1m high free fall impact.

2.It was made of Aluminum Alloy material, can bear capacity over 16 tons.

3.Excellent water-proof and anti-corrosive.

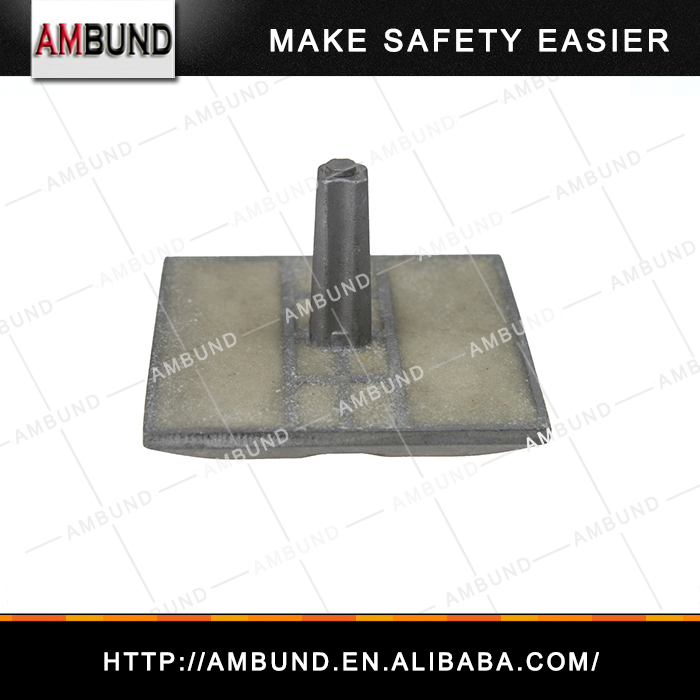

4.Solar Cat eye road stud with shank on the bottom can fixed to the road by the anti-twist stem for stability.

5. Reflective lens’s level can equal to the diamond grade.

6.Its high quality was recognized by State department of transportation with JT/T390 standard.

7.The reflective road stud is high quality with competitive price.

Normal life-cycle can last 3-5years.



---------------------------------------------------------------------------------------------------------------------------------------------------------

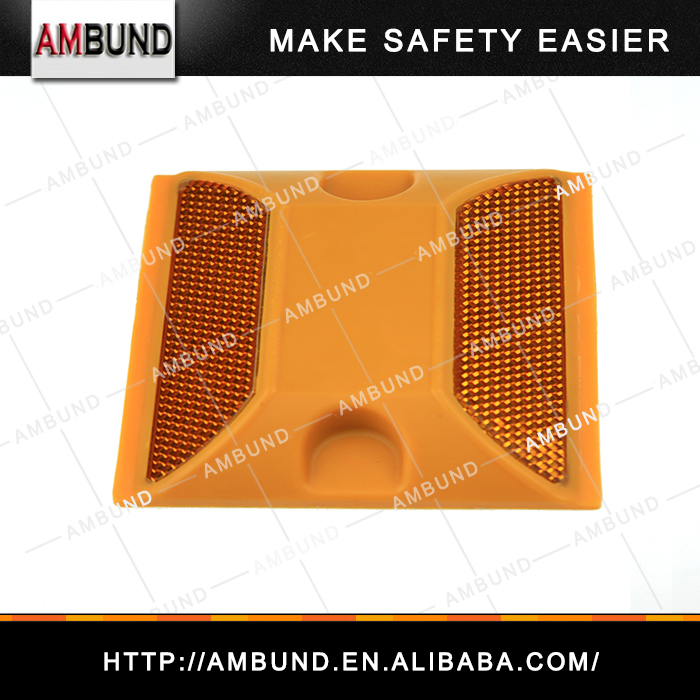

1.Item No.: RS-A08-002

2. Material: Shell ABS+Filling Epoxy glue and quartz sand+lens PMMA

3.Size:102*102*20mm

4.Net.W:185g

5.Compressive load of the reflective road stud 140kN

6.Luminous Color: Red/ Yellow/Blue/Green/White

7.Bearing capacity:16tons

8.photometric value:over 600mcd

9.reflective index:over300m

9.Packing size:56*22.5*22.5cm

10.G.W:18.61kg. N.W:17.8kg

11.Quantity:96pcs/CTN





1.It can withstand the quality of 1kg of solid steel ball from 1m high free fall impact.

2.The reflective road stud is made of ABS material and can bear capacity over 16 tons.

3.Excellent water-proof and anti-corrosive.

4.Non-toxic and Eco-friendly PMMA lens’luminous intensity almost equal to the

Diamond grade.

5. Its high quality was recognized byState department of transportation with

 JT/T390 standard as well as US Transportation Safety Standard.

6.Heat and high temperature resistance,anti-ultraviolent.

7.High quality with competitive price.

8.Normal life-cycle can last 3-5years.











---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Technical Specifications:
 Size: 11.5*100*22mm; Net weight: 314g
 Solar panels:3v / 85mah
 Power supply: 1.2v 600mah NI-MH battery
 Rated power:0.065W
 Lighting mode: flashing
 LED: φ5mm, 6pcs (dual side)
 Luminous colors: yellow, red, white, blue, green
 Working time: over 60 hours after full charged.
 Cat eye road stud Visual distance: >500m
 Temperature rating: -20°C to +70°C
 Compression resistance: over 10ton
 Application: road sides
