12V or 24V Solar Powered Flashing LED Light Traffic Road Arrow Sign Traffic Warning Arrow Board Trailer

FOB Reference Price:Get Latest Price
US $195-600 / Pieces | 10 Piece/Pieces (Min. Order)
Key Company Capacity
Trade Capacity >
  • Export Mode: Have Own Export License
  • Export Percentage: 91% - 100%
  • No. of Employees inTrade Department: 11-20 People
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
AMBUND
Model Number:
Trailer Mounted Arrow Board
Material:
Aluminum sheet and welded channels
Color:
Yellow
Voltage:
12V or 24V are optional
Trailer:
2 different types of trailers are optional for type C arrow board
Coating:
Powder-coated and oven-baked
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Opp Poly bag/inner box/ctn
Port
Ningbo

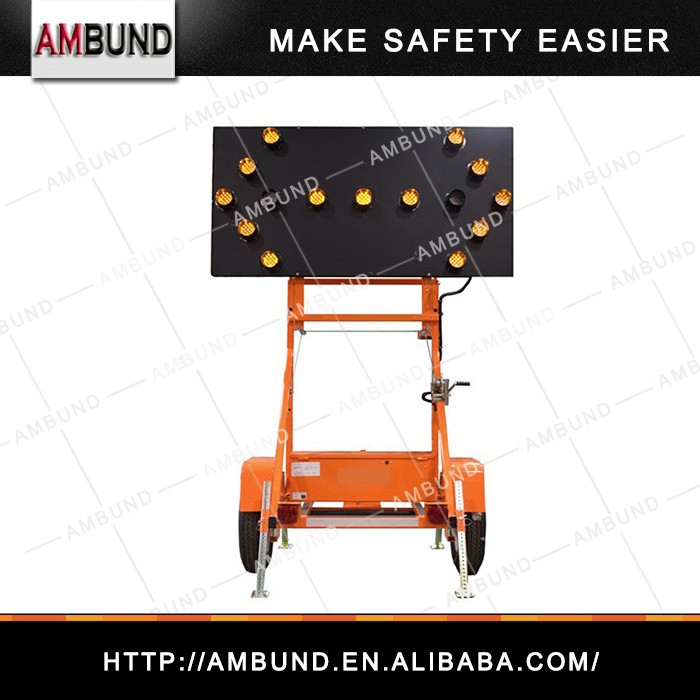

Trailer Mounted Big LED Solar Arrow Board Trailer

Product Specificatio



Product Description

Arrow boards direct traffic by flashing a brightly lit arrow pattern on a large, highly visible display panel. Truck-Mount Arrow Boards provide an obvious solution for convoys, crash-cushion (TMA) trucks and emergency repair crews. Installed over the cab or in a truck bed, power is provided by the truck's power system. Arrows and other patterns are selected by the user using the arrow board controls inside the truck cab.

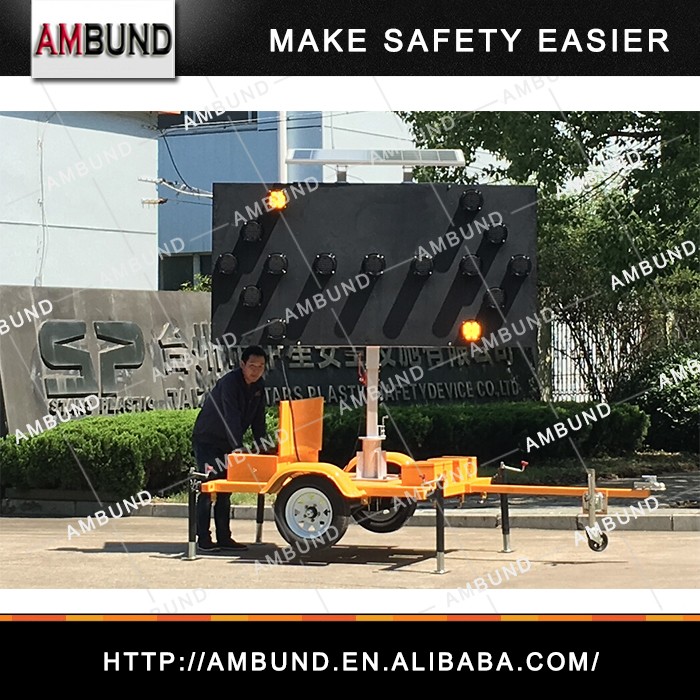

TRAILER FOR ARROW BOARD

INTRODUCTION OF TRAILER

•Trailer is wind- loading approved,and heavy duty standard couplings allows it to be towed by most vehicles.

•Width 1. 65 meters. Available for Austrian standard SIZE A and MUTCD standard TYPE B & TYPE C.

•Lifting system allows one person to easily raise / lower the board by 1200LBS Hand Winch from 260CM to 350CM.

•Solar panels rotates 180 degrees for optimal positioning to be recharged.

•Display board rotates 360 degrees for positioning without moving trailer.

•Hot- galvanized steel structure, anti- corrosion for 20+ years.

•Transportation : STARS PLASTIC sends all separated parts and accessories of the trailer.

  It's easily assembled by customer





MUTCD STANDARD TYPES

Following 4 different sizes are optional, meet MUTCD standard, suitable for market of American, Canada, etc.

MUTCD Type

Sign size (inches)

Lamp quantity

Lamp type

Viewing distance(m)

A

24x48

13pcs

PAR36

800

B

30*60

15pcs

PAR36 / PAR46

1200

25pcs

PAR36

1200

36*72

15pcs

PAR46

1200

25pcs

PAR46

1200

C

48*96

15pcs

PAR46

1600

25pcs

PAR46

1600

All arrow board can display any of <A,B,C,D> 5 patterns; 15- and 25-elements sign can display <E> 2 patterns;

25- elements arrow boards can display <F,G,H> 5 patterns



AUSTRALIAN STANDARD TYPES

Following 3 different sizes are optional, meet AS 4192-2006 standard, suitable for market of Australian market.

TypeMinimum Sign size (mm)Lamp quantityLamp typeViewing distance(m)
A650x126013pcsPAR36 / PAR46800
B770x150015pcsPAR36 1200
C1200x240015pcsPAT461600
*For trailer-mounted signs,2pcs additional elements are located on the rear face of the sign.
