MEXICO Type Trailer / Traffic Control Equipment Solar Led Arrow Warning Light Sign Board Truck Mounted Arrow Board

FOB Reference Price:Get Latest Price
US $200-1,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
AMBUND
Model Number:
MECIXO type
Material:
Aluminum sheet and welded channels
Coating:
Powder-coated and oven-baked
Voltage:
12V or 24V are optional
Auto dimming:
avaliable
IP68 sealed waterproof lamp:
YES
PAR36 Lamp:
over 450CD
PAR46 Lamp:
over 650CD
Supply Ability
Supply Ability:
50 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton
Port
Ningbo
Lead Time :
10days after advance

MEXICO type trailer / truck mounted LED Arrow board



Product Specificatio


Solar ARROW BOARD DESCRIPTION



CONSTRUCTION

Arrow board material

Aluminum sheet and welded channels

Coating

Powder-coated and oven-baked

Wiring

Color-coded

Cable length

15 ft. (4.57 m) standard; custom lengths available upon request

Connection

Screw-type locking collar secures plug-in cable socket to control box

Voltage

12V or 24V are optional

Slight-emitting element

PAR 36 (50pcs LED inside) & PAR46 (40pcs LED inside) are applied to different sizes

Trailer

2 different types of trailers are optional for type C arrow board





Type

Sign size (inches)

Lamp quantity

Lamp type

Viewing distance(m)

A

24x48

13pcs

PAR36

800

B

30*60

15pcs

PAR36 / PAR46

1200

25pcs

PAR36

1200

36*72

15pcs

PAR46

1200

25pcs

PAR46

1200

C

48*96

15pcs

PAR46

1600

25pcs

PAR46

1600

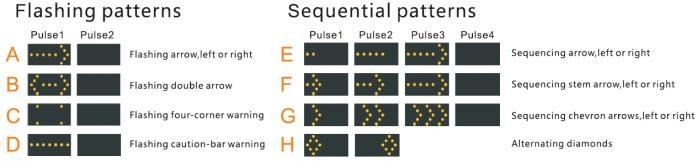

All arrow board can display any of <A,B,C,D> 5 patterns; 15- and 25-elements sign can display <E> 2 patterns;

25- elements arrow boards can display <F,G,H> 5 patterns



Operation

  • High-output amber LEDs

  • Selection of arrow and other display patterns

  • Easy to operate and maintain

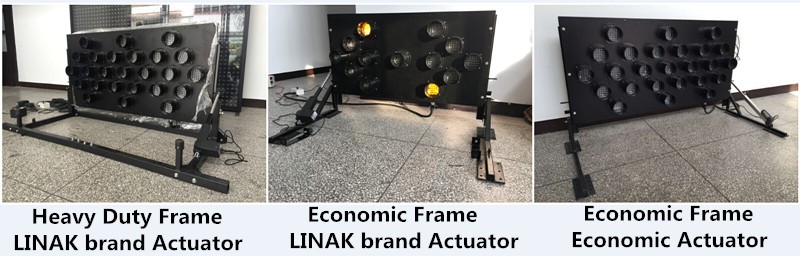

  • Heavy-duty hand-winch with safety brake allows one person to raise board

  • Single locking device holds arrow board in place while operating and during transport

  • Controller located safely away from traffic

  • Weather-resistant control box cover has lockable slam-latch

  • Control box outputs have short-circuit protection, helping prevent blown transistors

  • Arrow display has automatic dimming

  • Stabilizer legs raise tires off the ground to provide stability in high wind



Power system

  • Energy-efficient operation results in long run times

  • Solar panels charge batteries automatically without intervention

  • System disconnects solar charging system from batteries when they are fully charged, preventing over-charging and damage to batteries

  • Unique system allows battery charging with solar panels or commercial power

  • Power system includes reverse polarity protection and low-voltage disconnect circuit

  • Controller has resettable fuses

  • Solar charging system features solid state voltage regulator with charge indicator

Maintenance

  • Maintenance-free batteries

  • Durable powder-coat finish resists the elements

  • In travel position, unique design supports board without rear braces, reducing possibility of damage during transport or storage

  • Lamps and visors are easily replaced

  • Standard trailer tires

  • Heavy-duty bolt-on steel fenders can be replaced if damaged

Environmental

  • Consumes 80% less power than traditional solar arrow boards

  • Smaller batteries have 80% less lead content

  • Sealed batteries will not leak or spill

  • Decreased charging time saves energy and downtime

  • Manufacturing process emits near-zero VOCs

  • Nearly every component can be recycled



Feel free to send us message if you have any question, please
