Solar LED Trailer Mounted Arrow Boards by manufacture LED arrow board

FOB Reference Price:Get Latest Price
US $400-2,400 / Piece | 1 Piece/Pieces LED arrow board (Min. Order)
Supply Ability:
50 Piece/Pieces per Month LED arrow board
Port:
Ningbo
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
AMBUND
Model Number:
HL-TR-S
Arrow board material:
Aluminum sheet and welded channels
Coating:
Powder-coated and oven-baked, UV Resistance
Voltage:
DC 12V standard ( DC 24V customized)
Warranty:
one yaer
Product name:
LED arrow board
Packaging & Delivery
Packaging Details
carton
Delivery Time
10days after payment

Solar LED Trailer Mounted Arrow Boards by manufacture



Product Specificatio

 LED arrow board DESCRIPTION

Standard

MUTCD standard / AS 4192-2006 standard Single sided

Double sided types are available

Arrow board materialAluminum sheet and welded channels
CoatingPowder-coated and oven-baked, UV Resistance
LampSmaller PAR36 lamp with 50pcs LED / Larger PAR 46 lamp with 40pcs LED, IP68 sealed waterproof
VisorHigh-impact ABS plastic , enhance visibility by shading the lamp and preventing glare
Digital controllerWith adjustable pedestal, shows the board’s working mode
VoltageDC 12V standard ( DC 24V customized)
Auto DimmingBuilt- in standard function
Truck mounted

Available for A size and B size:

1. Manual operated is available;

2. Power operated with LINAK actuator is available with Standard frame( Heavy Duty frame is available for MUTCD type B boards)

Trailer mountedAvailable for C size: 1.Manual winch trailer is available 2.Hydraulic lift trailer is available
Cable length

1.30ft.(9m) standard for truck mounted type A size and B size;

2.10ft. ( 3m) standard for trailer mounted type C size;

3.Customized length is available.

ConnectionScrew-type locking collar secures plug-in cable socket to control box, totally waterproof
MaintainanceAll electrical parts are plug mounted, easily to be replace within some minutes
WarrantyOne year warranty and two sets of lamp+ visor as replacements for free

 LED arrow board

Product Specificatio
AUSTRALIAN ARROW BOARD STANDARD TYPES

Following 3 different sizes are optional, meet AS 4192-2006 standard, suitable for market of Australian market.

TypeMinimum Sign size (mm)Lamp quantityLamp typeViewing distance(m)
A650x126013pcsPAR36 / PAR46800
B770x150015pcsPAR36 1200
C1200x240015pcsPAT461600
*For trailer-mounted signs,2pcs additional elements are located on the rear face of the sign.



Operation

  • High-output amber LEDs

  • Selection of arrow and other display patterns

  • Easy to operate and maintain

  • Heavy-duty hand-winch with safety brake allows one person to raise board

  • Single locking device holds arrow board in place while operating and during transport

  • Controller located safely away from traffic

  • Weather-resistant control box cover has lockable slam-latch

  • Control box outputs have short-circuit protection, helping prevent blown transistors

  • Arrow display has automatic dimming

  • Stabilizer legs raise tires off the ground to provide stability in high wind

  • Meets AS4192-2006

LED arrow board

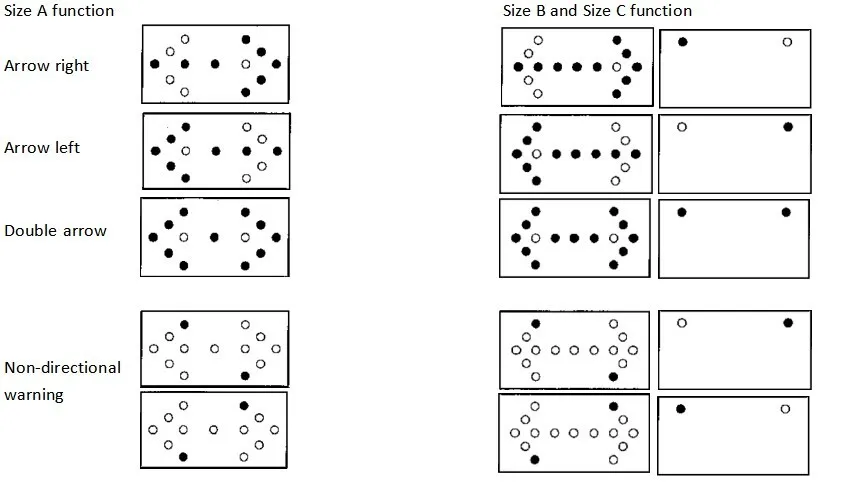

  Flashing modes

Power system

  • Energy-efficient operation results in long run times

  • Solar panels charge batteries automatically without intervention

  • System disconnects solar charging system from batteries when they are fully charged, preventing over-charging and damage to batteries

  • Unique system allows battery charging with solar panels or commercial power

  • Power system includes reverse polarity protection and low-voltage disconnect circuit

  • Controller has resettable fuses

  • Solar charging system features solid state voltage regulator with charge indicator

Maintenance

  • Maintenance-free batteries

  • Durable powder-coat finish resists the elements

  • In travel position, unique design supports board without rear braces, reducing possibility of damage during transport or storage

  • Lamps and visors are easily replaced

  • Standard trailer tires

  • Heavy-duty bolt-on steel fenders can be replaced if damaged

Environmental

  • Consumes 80% less power than traditional solar arrow boards

  • Smaller batteries have 80% less lead content

  • Sealed batteries will not leak or spill

  • Decreased charging time saves energy and downtime

  • Manufacturing process emits near-zero VOCs

  • Nearly every component can be recycled
