Led Variable Sign X and DOWN ARROW LED Blank-Out Lane Control Signs

FOB Reference Price:Get Latest Price
US $600-1,000 / Piece | 5 Piece/Pieces (Min. Order)
Supply Ability:
500 Piece/Pieces per Month
Port:
Ningbo /Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
ELLUMIN
Model Number:
LVC-001
Material:
Aluminum
Size:
760x760x105mm
Black paint:
0.2 reflective rate
Function:
Green Arrow fixed - Red Cross fixed - OFF
Visibility:
10m-500m
Power supply mode:
Solar power or City power 110-240V
Packaging & Delivery
Packaging Details
carton packing
Delivery Time
15days

Highway Toll Plaza Signs

Specifications

Size:760x760x105mm
Material: Aluminum(δ=2mm) cabinet, light weight for easy moving
Black paint lasts for 10 years with 0.2 reflective rate
All sides are protected by silicone foam gasket.
Lockable by 4pcs at 2 styles of anti-theft locks
Left hinges allows to open the cabinet nearly 180°for easy maintenance
Front door open design makes maintenance and installation easy


X and DOWN ARROW

Features

Working mode: Green Arrow fixed - Red Cross fixed - OFF
Selecting switches are integrated in PCB board inside
Display is consisted by several individual PCB
Components connection design makes maintenance and installation easy
Optional: Auto dimming system to make lower power consumption

Individual optics lens are assembled inside-out with 3M sticker
417pcs Φ5mm LED by help of optics lens gives out super bright and uniform luminance
View angle: ±15°vertical, ±30°horizontal.
No secondary glazing to reduce brightness or cause reflections
Perfect display with the visibility between 15m to 500m

Power supply mode
Battery power is available, 4 Battery holders are built inside of back door
Standard: max. 4pcs * 9AH maintenance-free batteries (optional 40W solar panel)
Optional: max. 4pcs * 12AH maintenance-free batteries(optional 80W solar panel)
City power 110-240V is available


Pictures of product

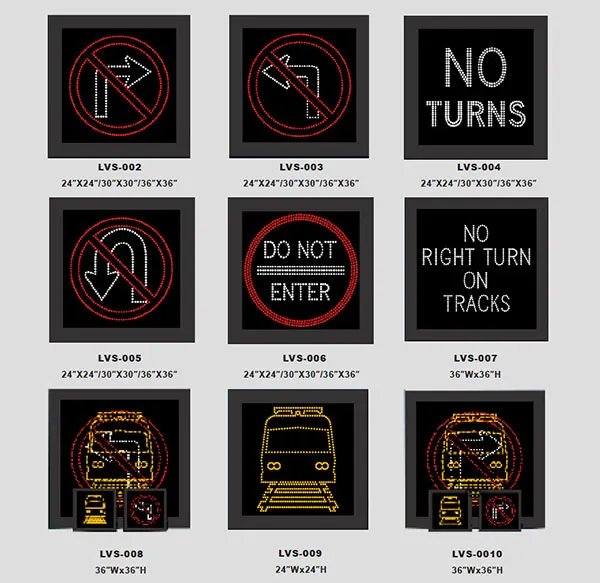

Customized designs are available at different sizes
